特点

ROHS Compliant (Pb Free)
Resistance welded type crystal units
Low profit product of SMD type
Large scope of standard frequencies
High frequency stability and low Equivalent Series-Resistance
Lower cost and higher mass production capacity

参数

Item Specification
Frequency Range 32.768kHz
Frequency Tolerance (at 25 ℃) ±20×10-6
Drive Level 0.1μW (0.5μW max.)
Operating Temperature Range -40 ~ +85℃ extended
Series Resistance 80kΩ max.
Load Capacitance 7pF, 9pF, 12.5pF
Parabolic Coefficient -0.04×10-6 / ℃2 max.
Storage Temperature Range -40 ~ +85℃
Shunt Capacitance 1.3pF typ.

ESR

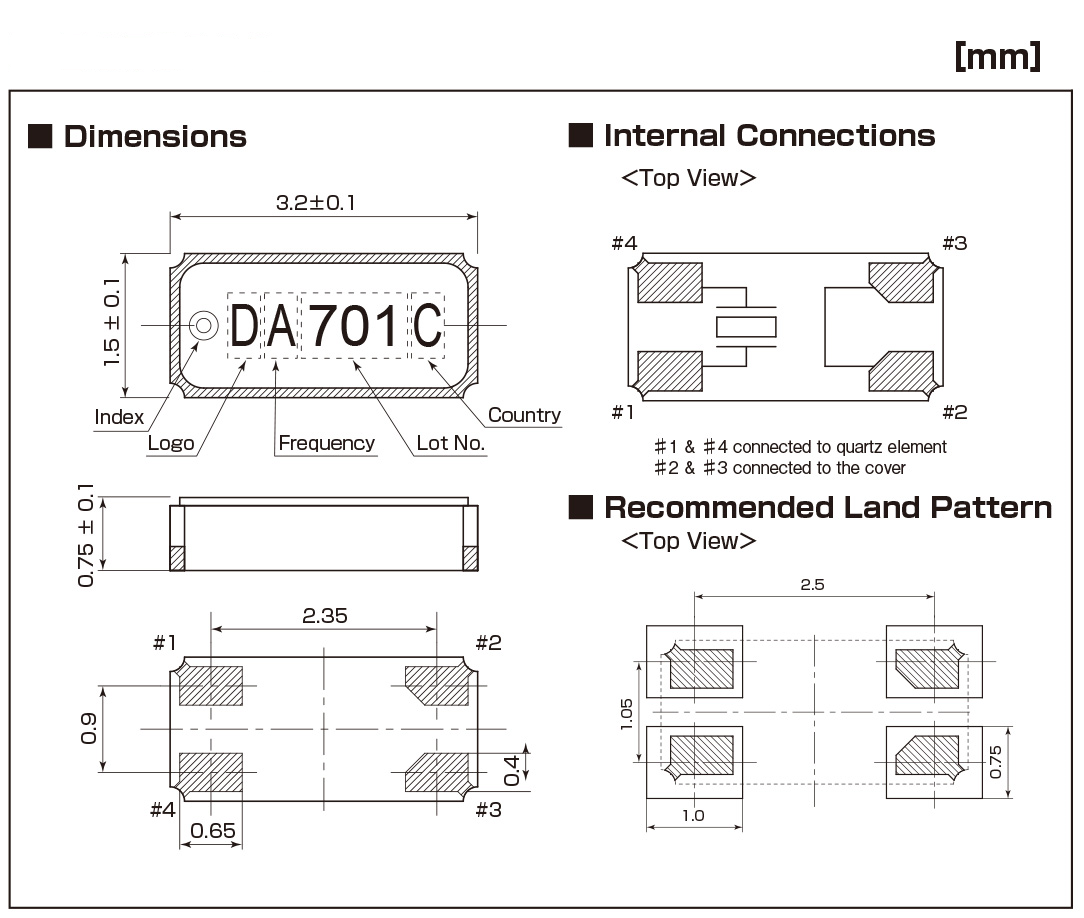

尺寸

Reflows
